Q) - Installing pump widget

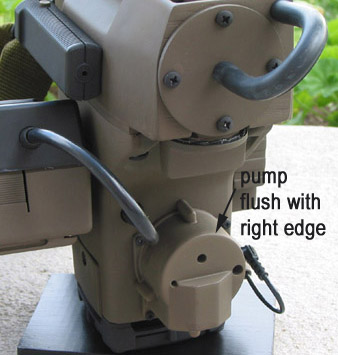

The pump widget has not yet been identified.  You will most likely be working from a casting of a pump or something close to it.  The pump mounts on the bottom of the tracker casing flush with the right hand edge and 1.5mm from the bottom of the casing.  Drill pilot holes and tap them with 4-40 screws.



Now take the cord that came with the remote release, cut off 4" from the mini male plug.  Stick the cut end into the self timer end.  Drill a small hole in the side of the pump and stick the male end of the plug into the hole
