D)  Mounting the Hama viewer hardware

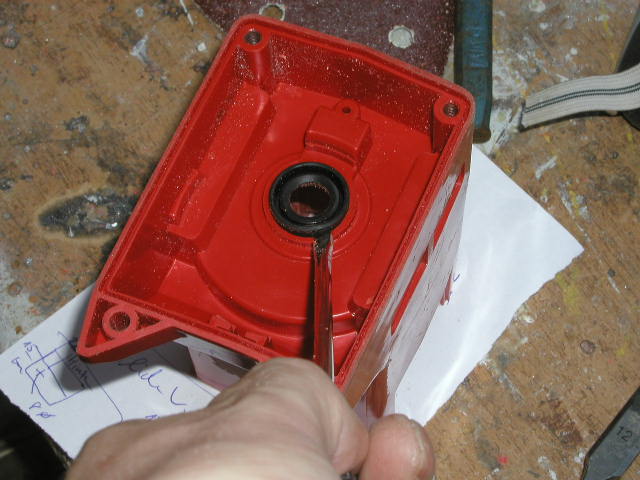

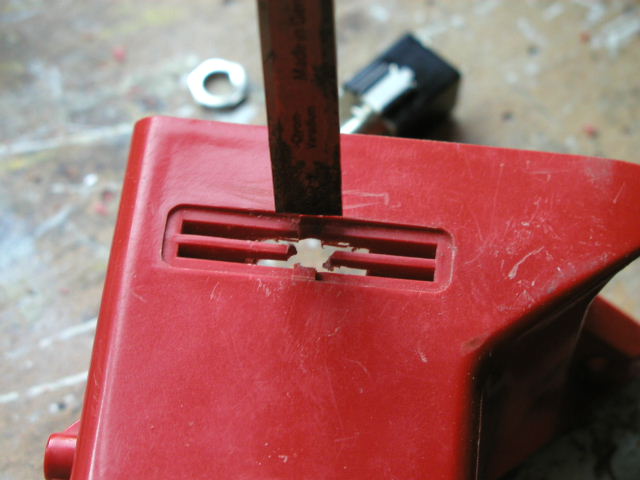

Remove the bottom plug from the drill case.  You can use a screwdriver to pry it up and out.

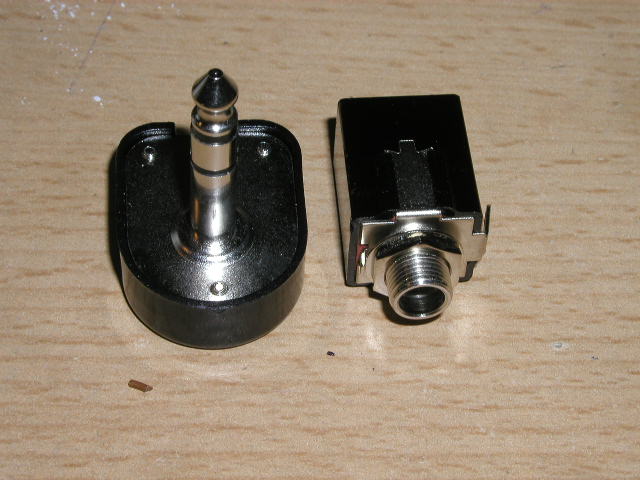

The parts you will need to finish this modification are a 1/4" male jack (commonly used in guitars) and a 1/4" enclosed female jack.  You can get both at Radio Shack.

1/4" male plug:  Radio Shack #274-266

1/4" female jack:  Radio Shack #274-280

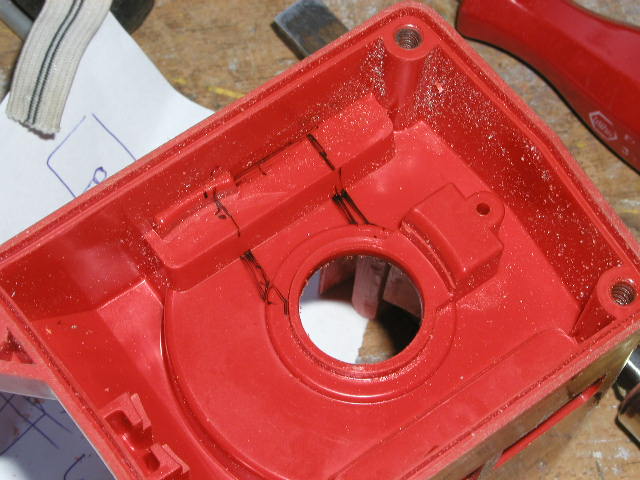

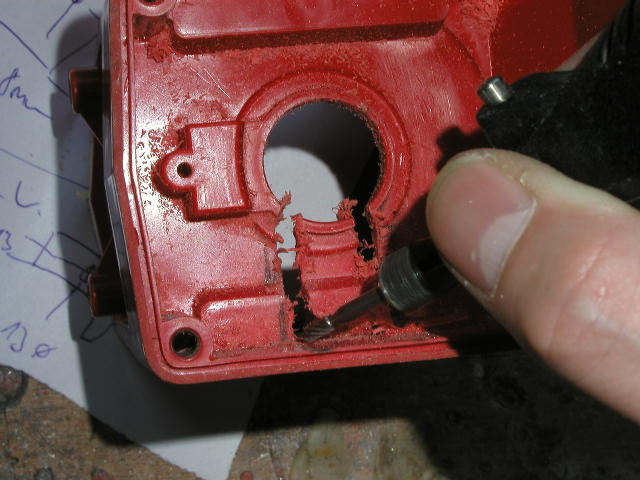

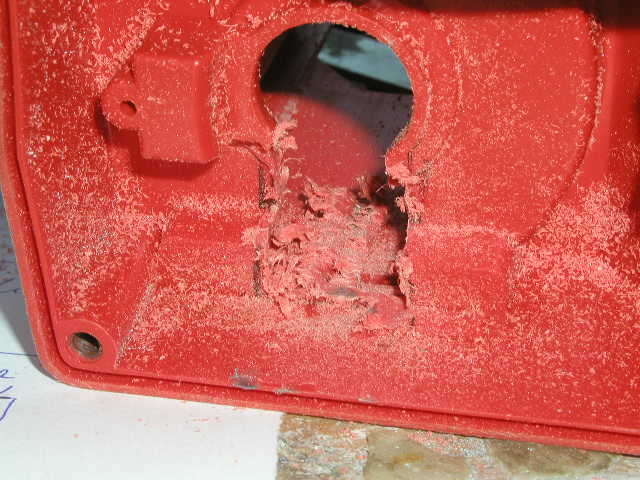

Now mark the inside of the drill case the length and width of the 1/4" female jack and dremel this area out.

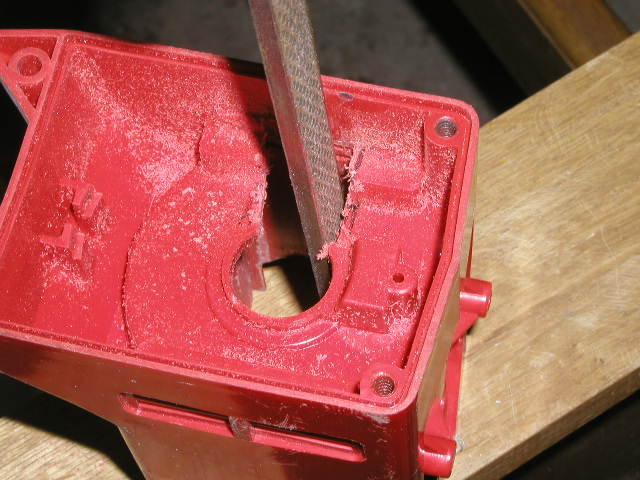

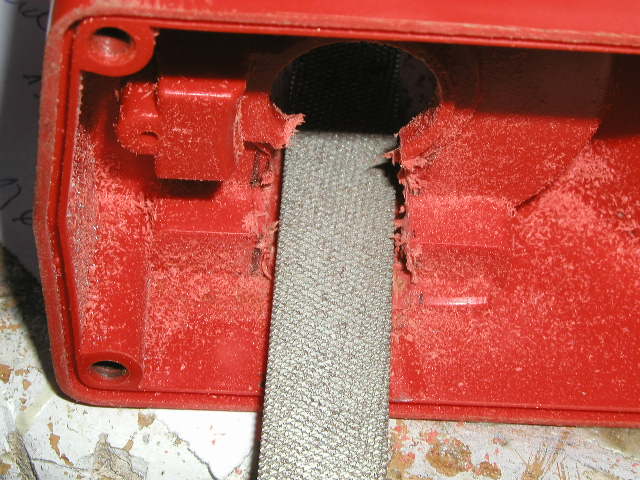

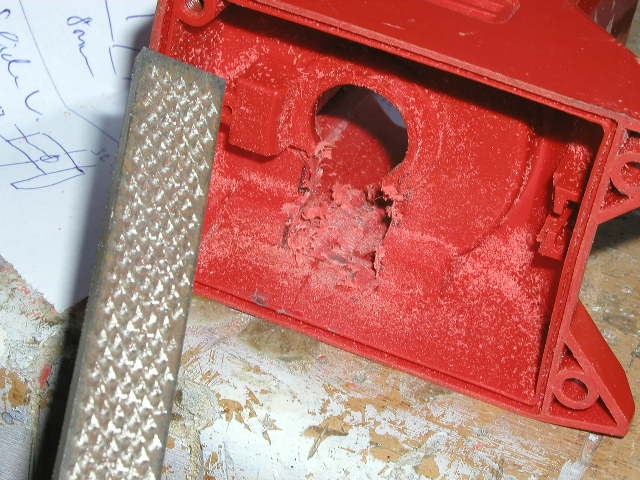

File this down flush.  You can also use a dremel to do this with a small grinding bit.

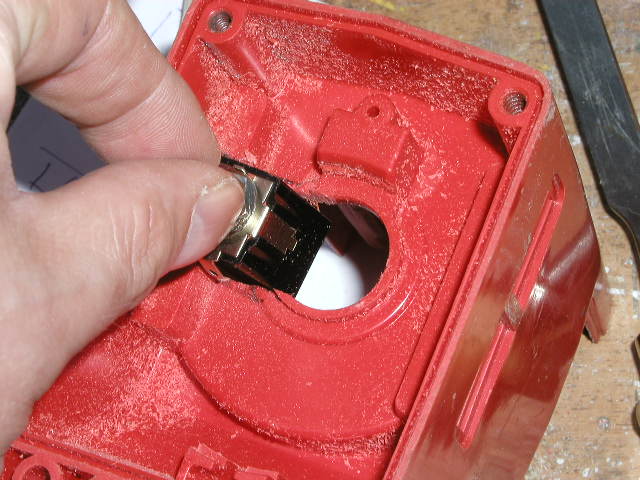

Test fit the 1/4" jack in the hole

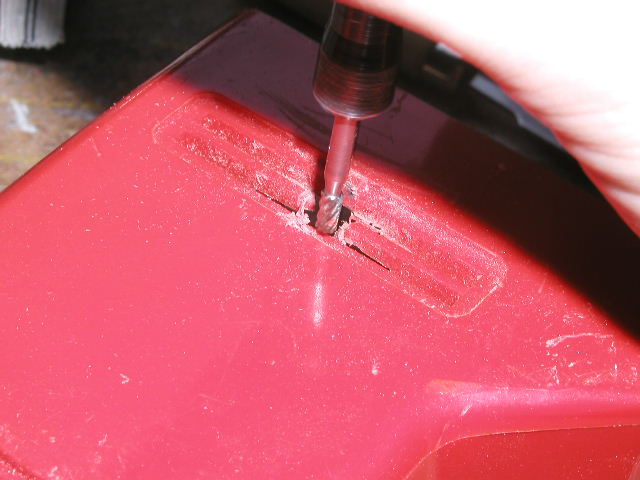

Now drill the outside of the drill case on the same side where you just dremeled.  Drill in the middle of the cut out rectangle that fits the 1/4" female jack .

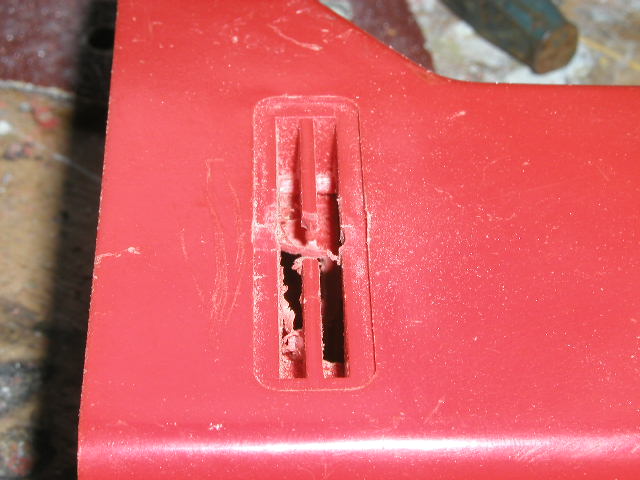

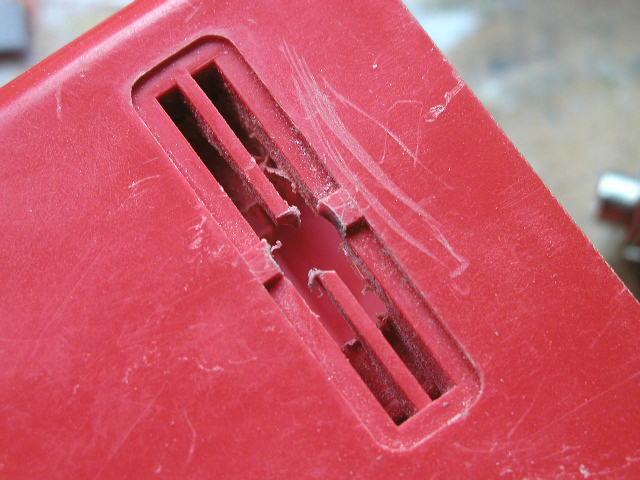

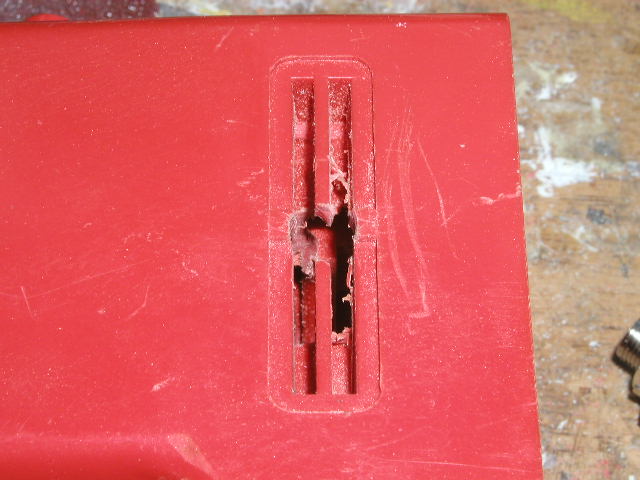

Dremel the sides down so that the 1/4" jack will fit through the hole.

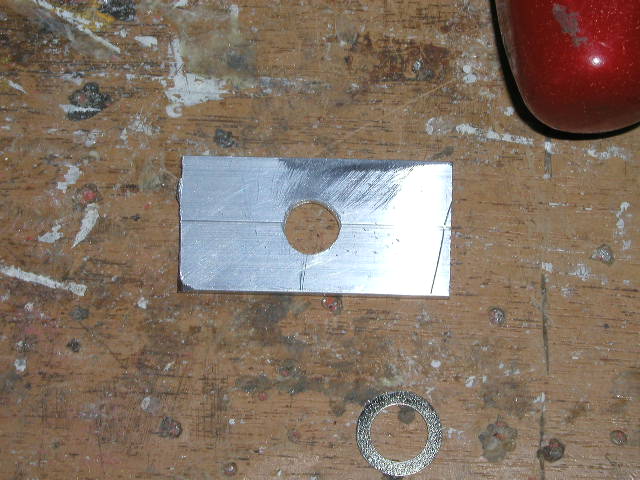

Now take a scrap piece of metal or plastic and drill a hole that will fit the 1/4" jack.

Make sure the piece is the same width of the jack so it slides in the dremeled out area.  It should also sit flush against the Kango body.

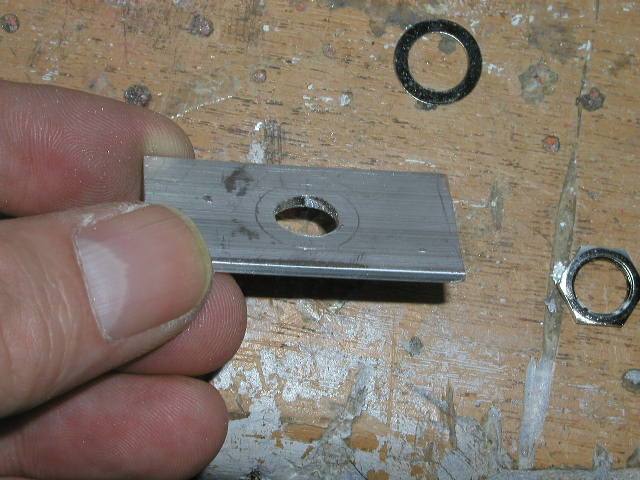

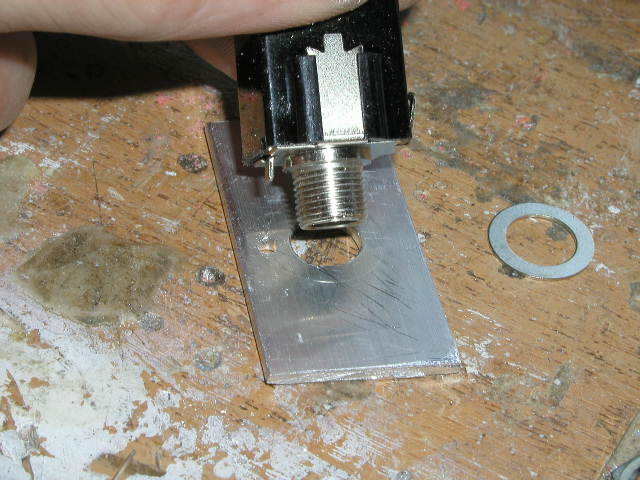

Slide the jack onto the metal piece

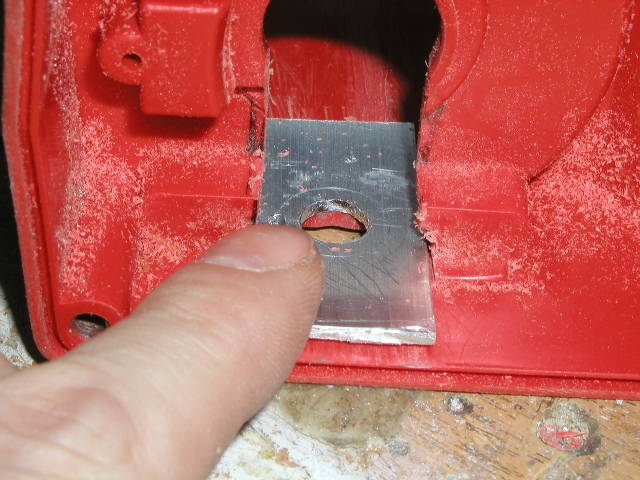

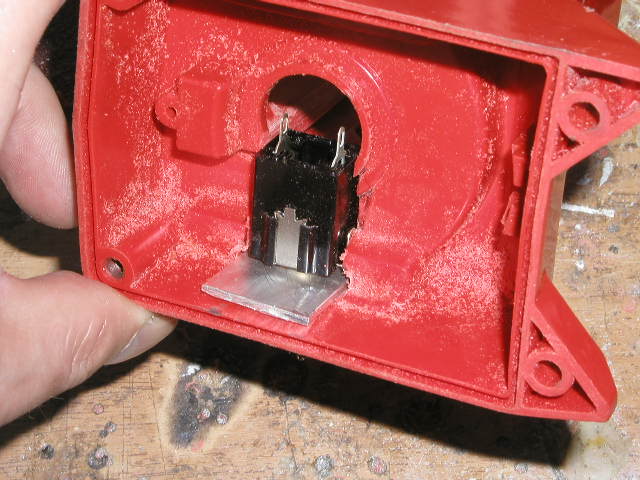

Fit the assembly into the case

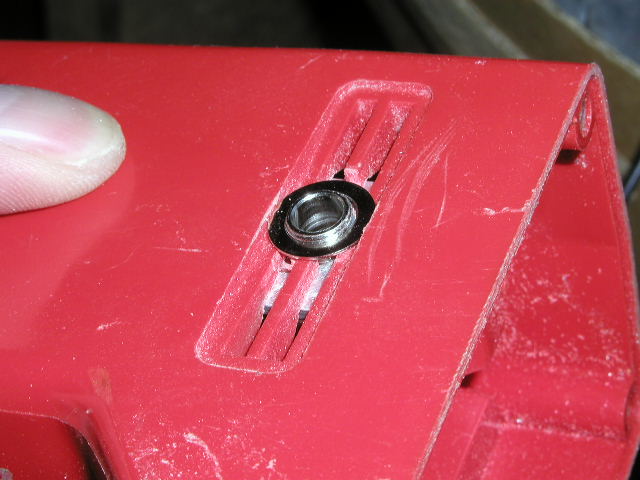

Now attach the washer to the body.

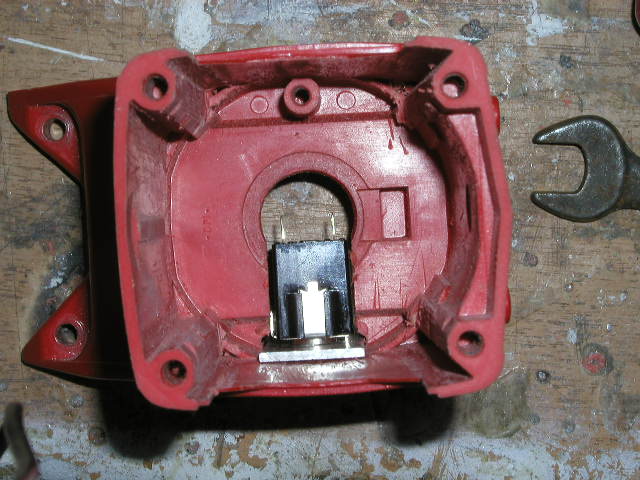

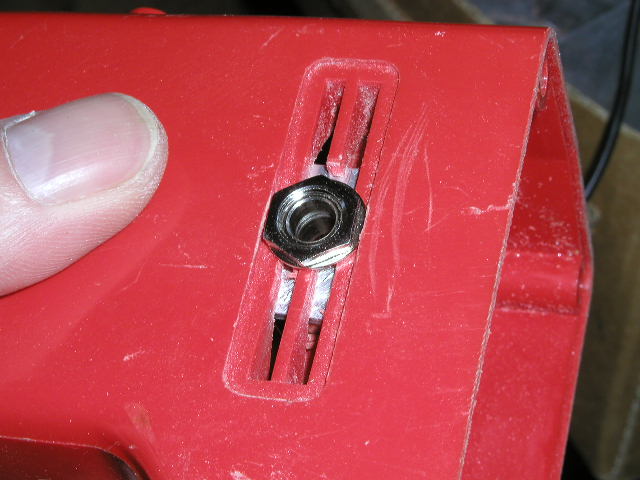

Place the panel nut on the jack and tighten into place.

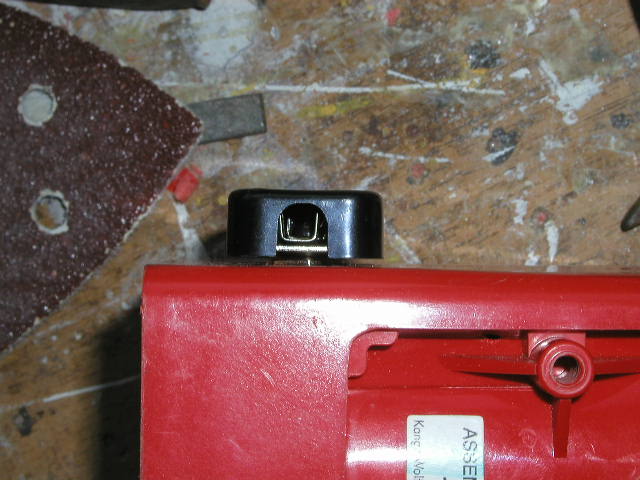

Now the 1/4" male plug fits into the drill case.  This will hold the Hama viewer later on.
