P) - Mounting side panels

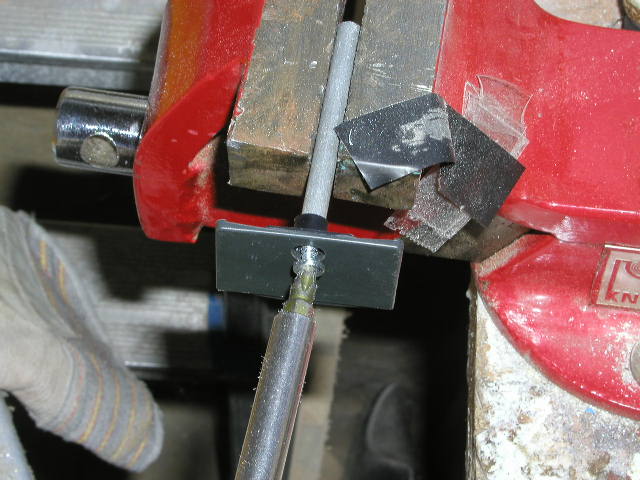

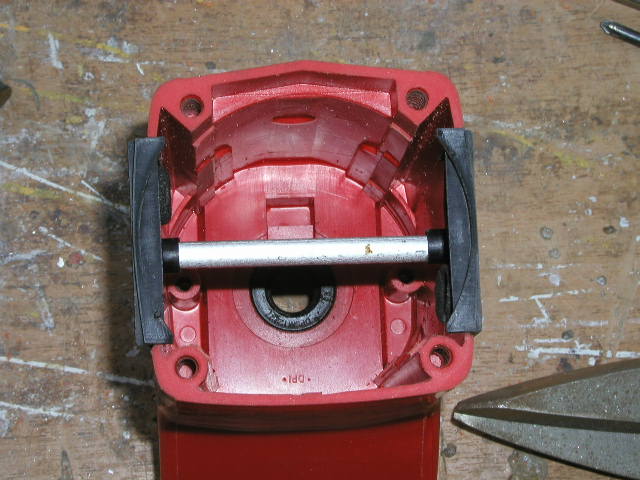

Using a piece of aluminum tube (or even some aluminum stand offs), screw together the side panels

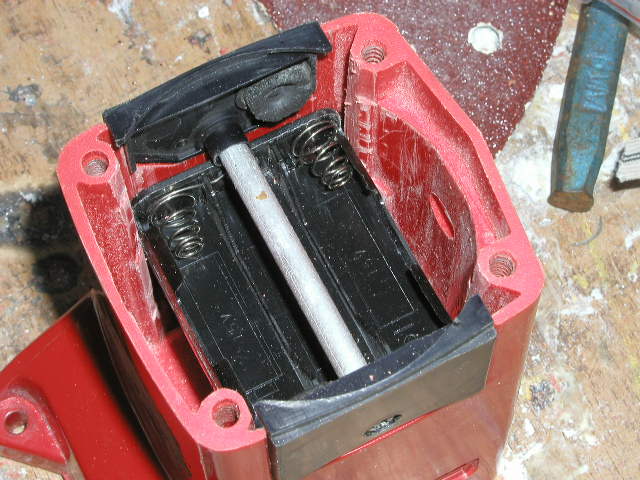

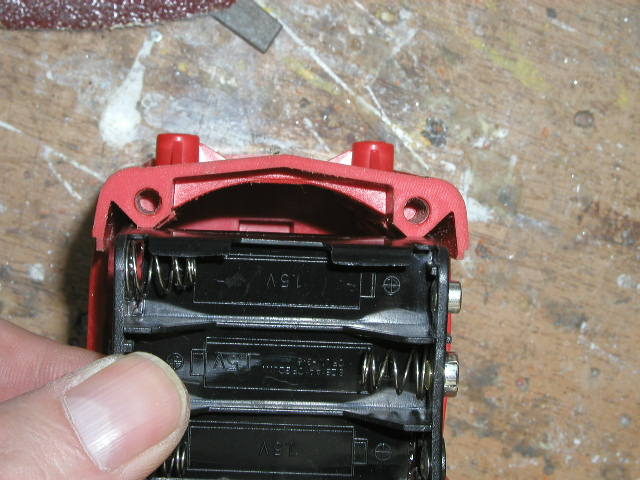

If you are installing electronics and are going to use a 6AA pack, you can fit it in the bottom of the drill case and then have the side panel bar hold it in place.
