B)  Routing out the screen area

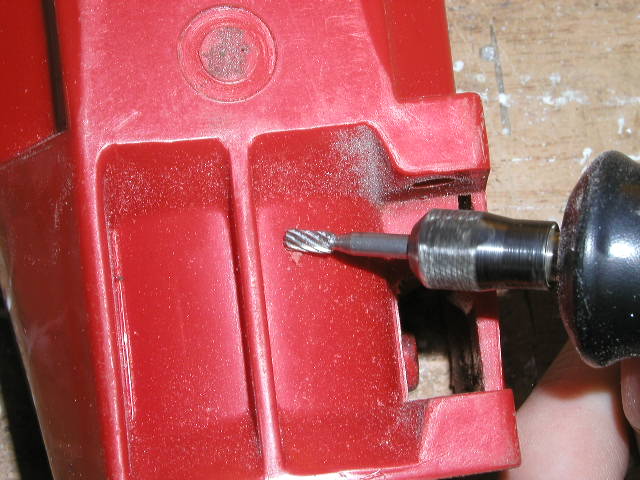

Next is to dremel out the bottom side of the Kango where the screen will reside.  Dremel out the plastic following the contour of the curved area.

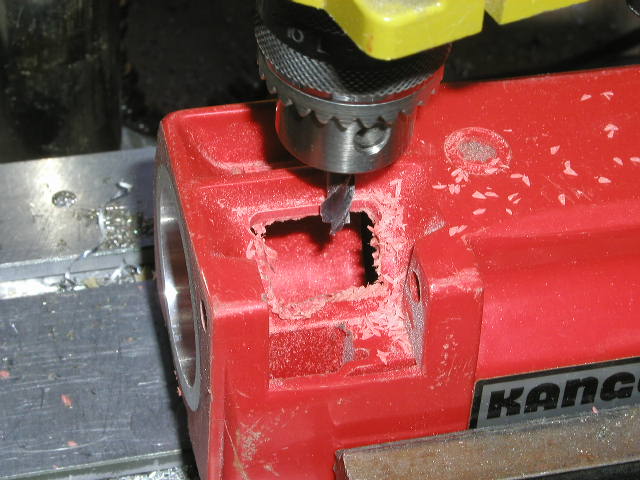

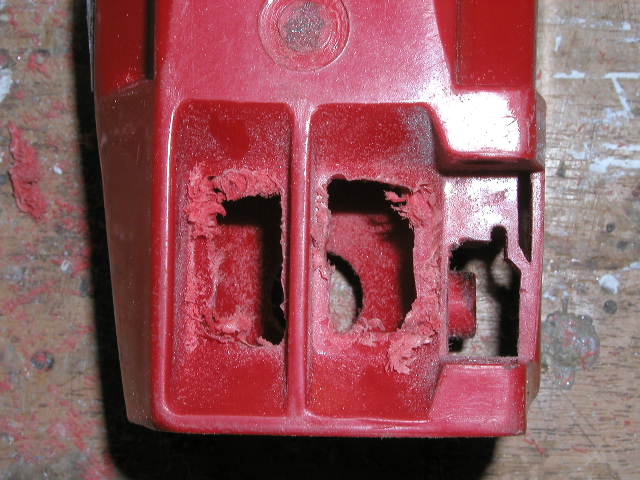

Cut away more material until you get to the edges of the contour.

Then file down until it is nice and even.

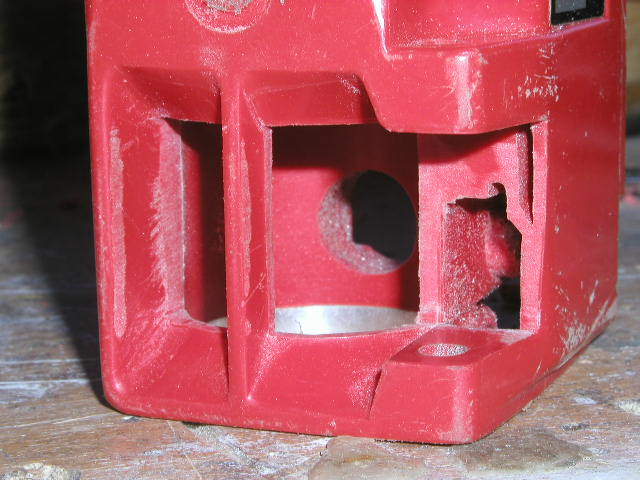

Finished

To Next Section
