M) - Installing the sling swivels

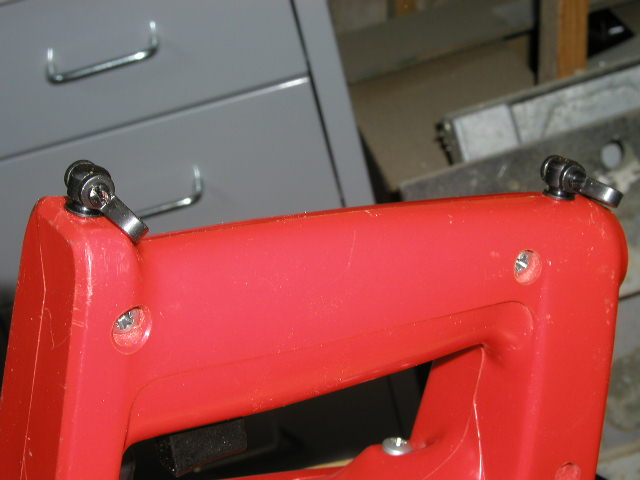

The sling swivels were made by Webley and Scott, a UK company.  Another very close sling swivel is made by Bisley.  If you are in the US, you can order the W&S sling swivels from http://www.pyramydair.com

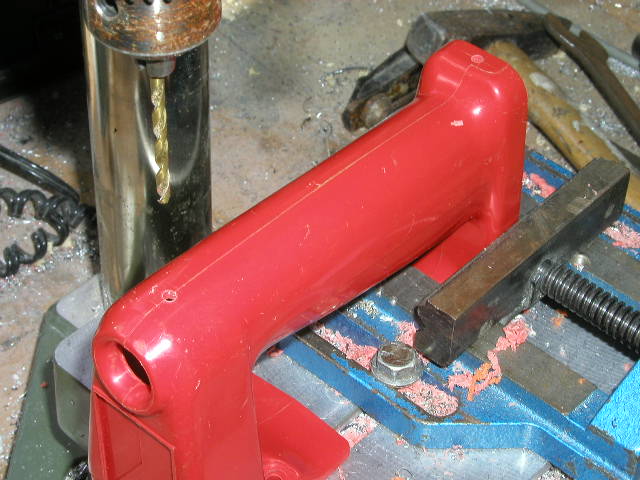

Drill 2 holes in the Kango handle.  The front hole is directly on the top of the handle.  The back hole is drilled in the middle of the handle seam line.  You should secure the 2 pieces together before drilling.
