H) Mounting the top side of the Hama viewer

In section D) you mounted the hardware to hold the Hama viewer to the drill case.  Now we will attach it to the Hama viewer.

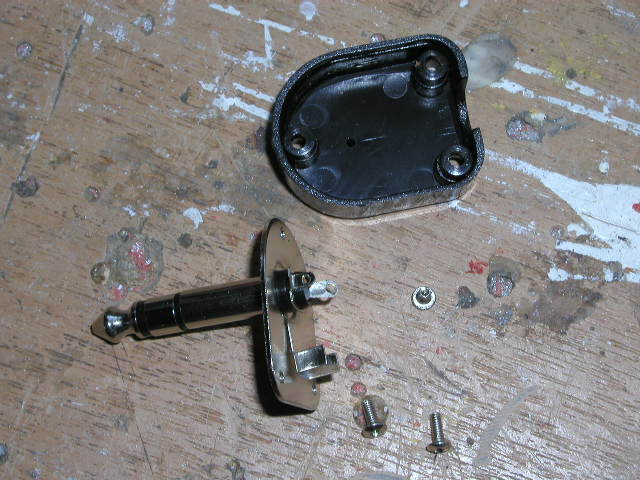

Remove the screws from the 1/8" jack and disassemble.

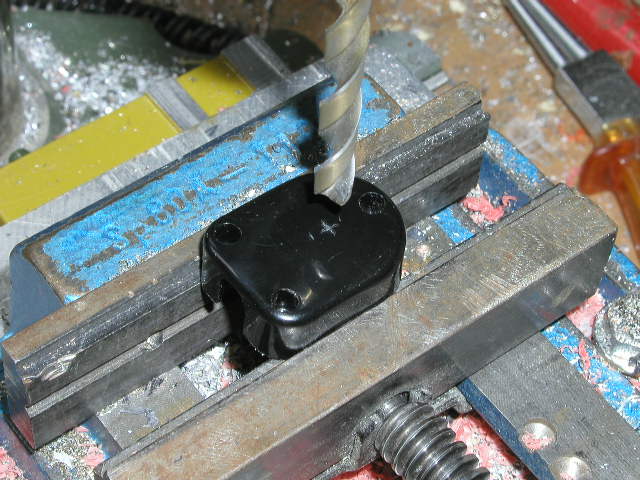

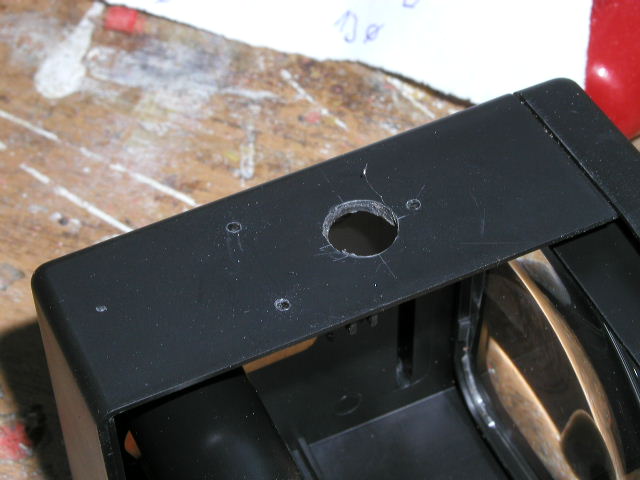

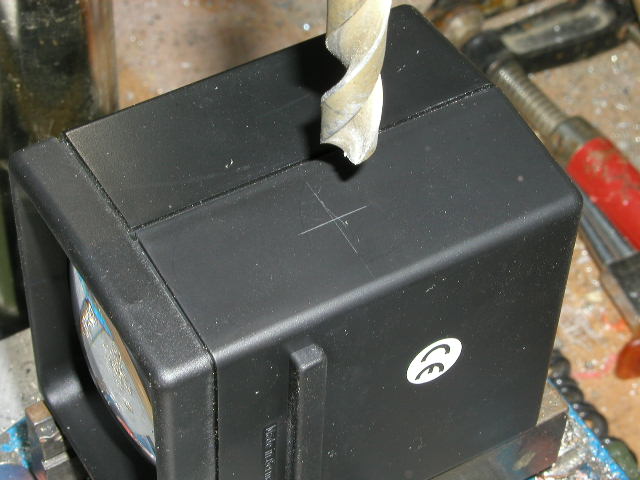

Drill a hole in the top part of the Hama viewer right next to the 2 ridges inside the viewer piece

Insert the plug

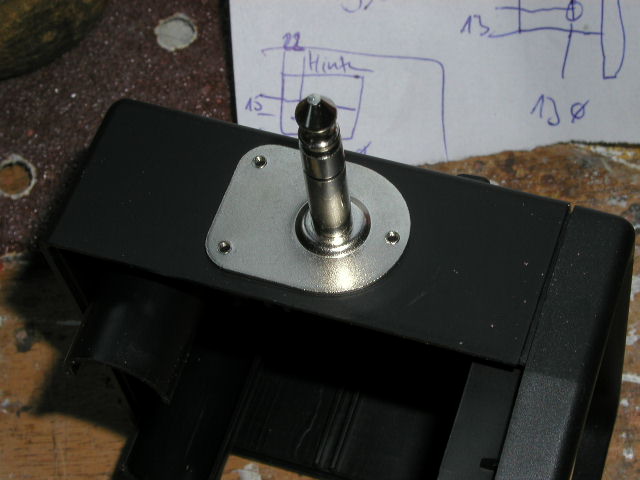

Plug faces the direction shown

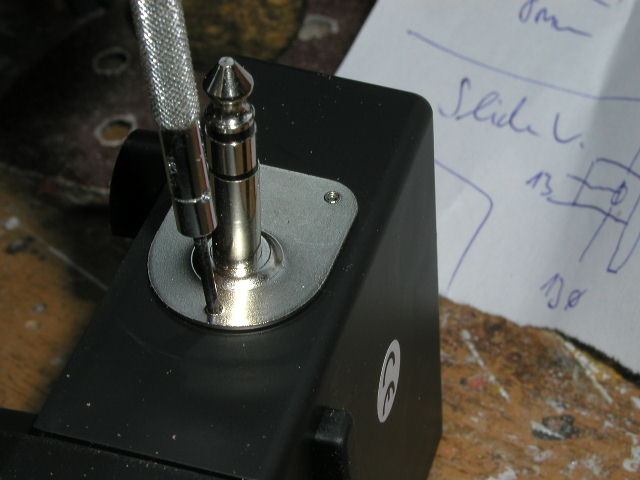

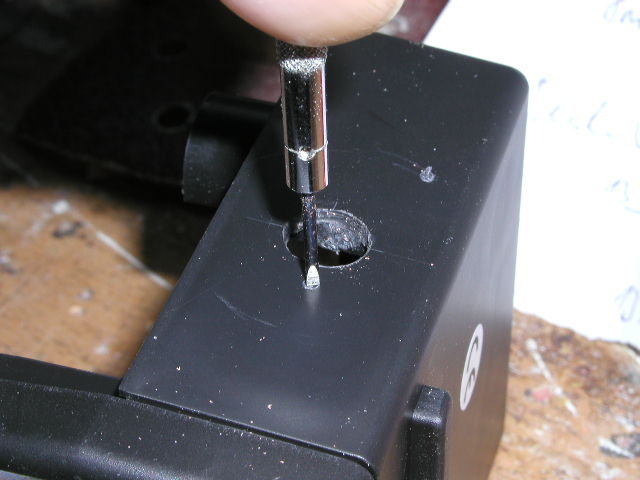

Mark the small holes for set screws

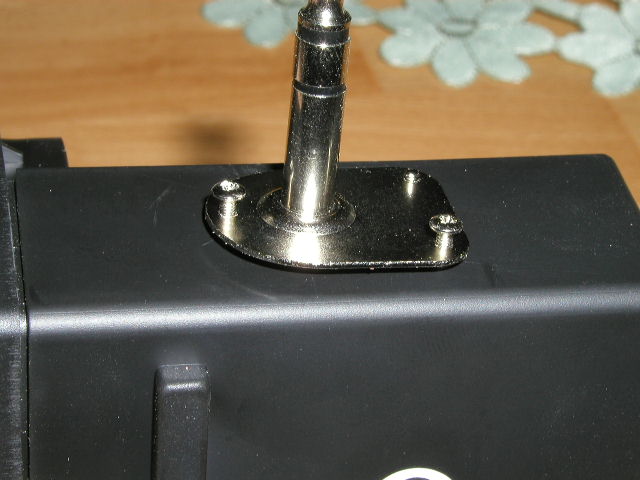

Drill out holes and screw in the jack

Finished

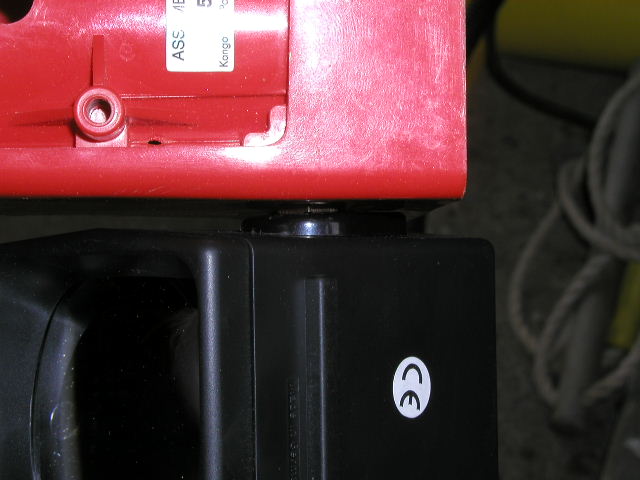

Plug the viewer into the drill case

OPTIONAL:  You can also make a cover for the plug by routing out the existing plastic piece.  Drill a center hole for the plug

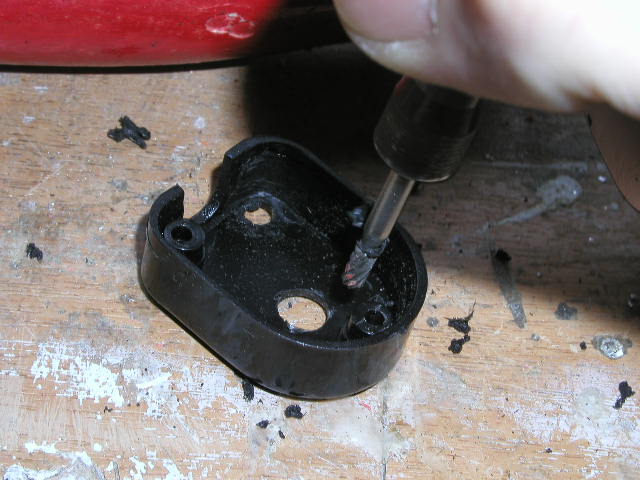

Route the inside and the screw posts

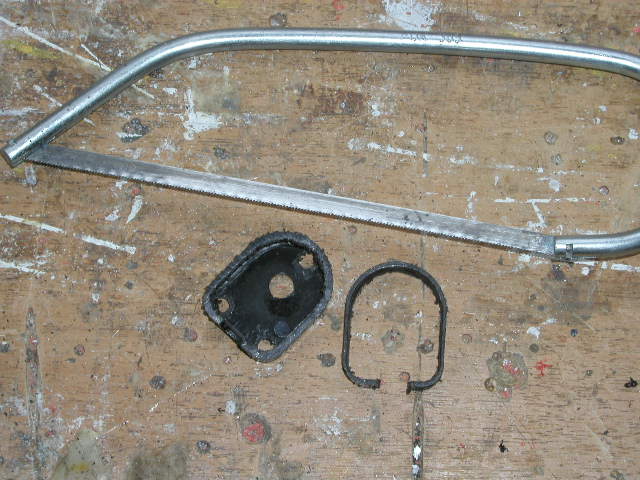

Cut the piece so you have a small top part left

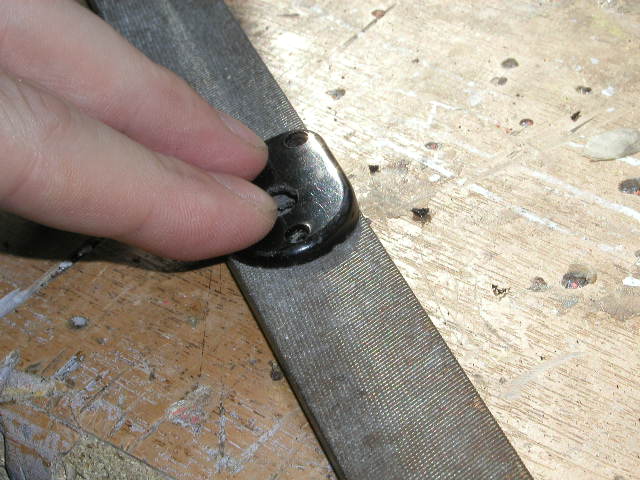

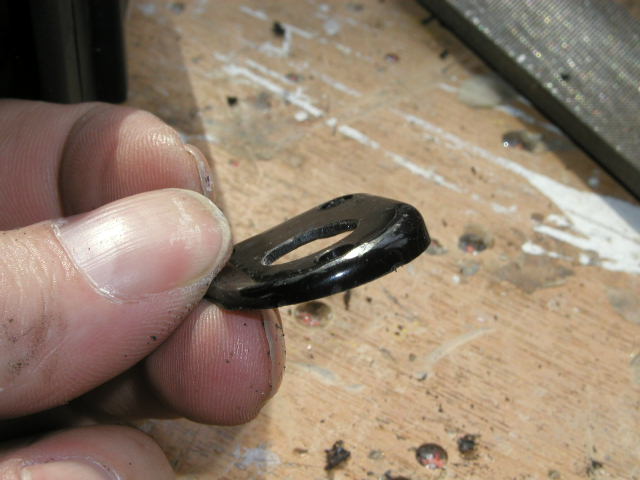

File and sand at an angle

Place this onto the jack

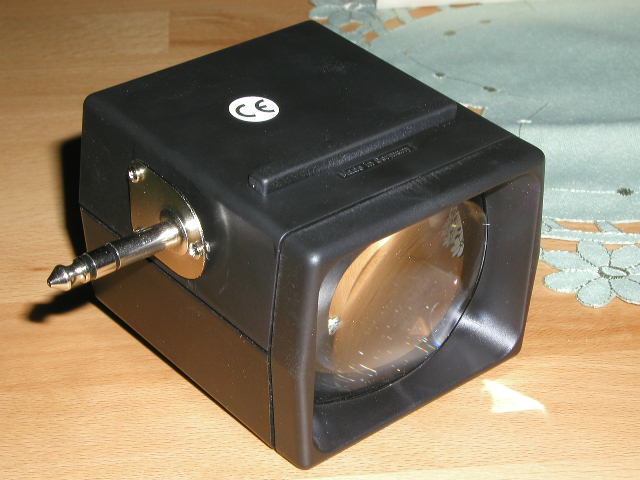

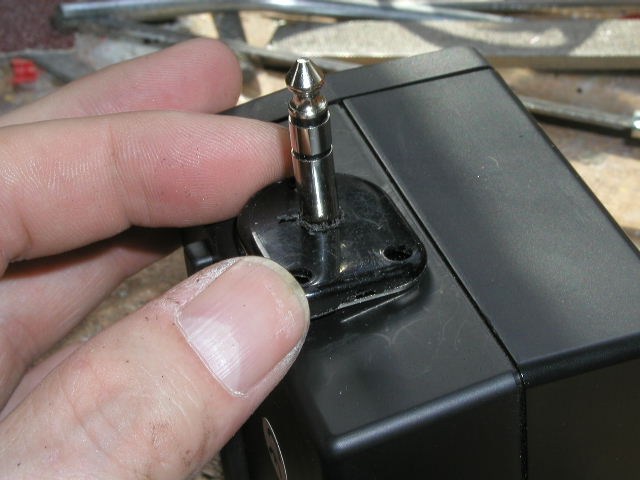

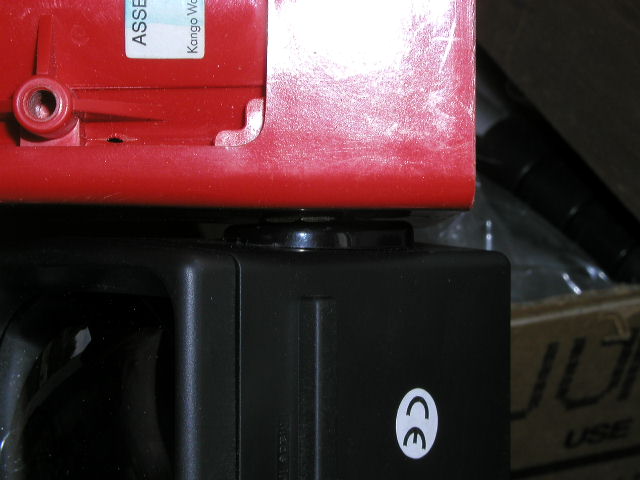

Finished.  Note in this setup the jack is slightly angled inward towards the bottom of the viewer.

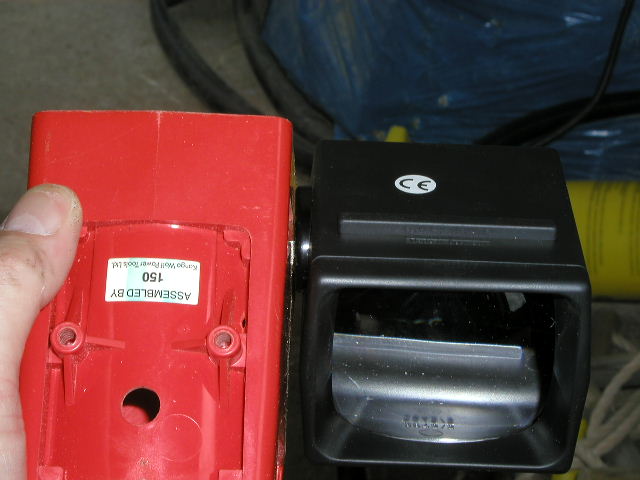

Plug the viewer back in and make sure the socket accepts the plug
