K) - Mounting the Hama remote release

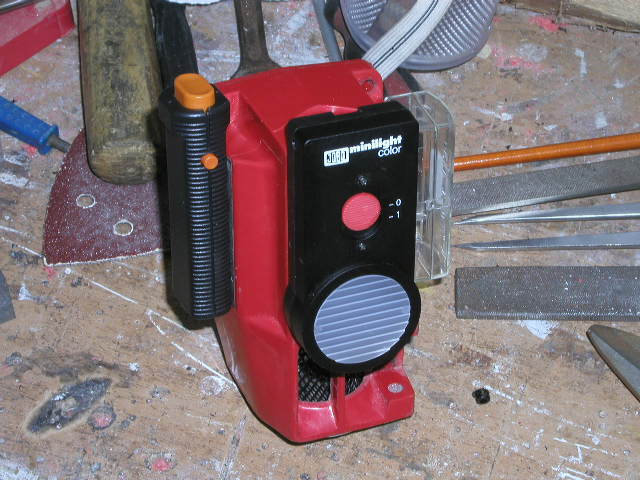

We are still working with this part of the drill case.  On the same side as the Hama viewer mount, we will be installing the remote release gadget.  The remote release will sit right on the kango sticker in front of the Hama viewer.  Here is what it will look like.

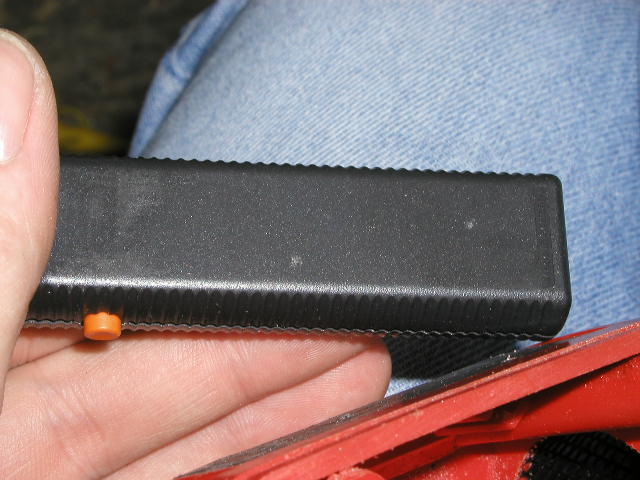

Line up the remote release onto the drill casing.  Mark 2 holes (pretty arbitrary) for drilling.

.

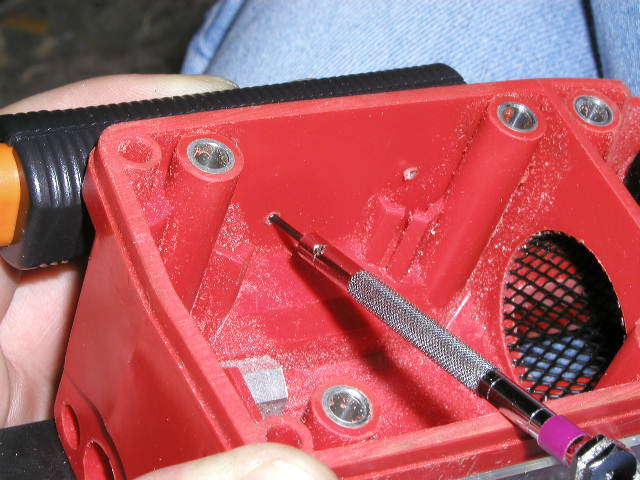

DONT disassemble the remote release.  You will just destroy it.  Instead, line up the release and mark 2 holes

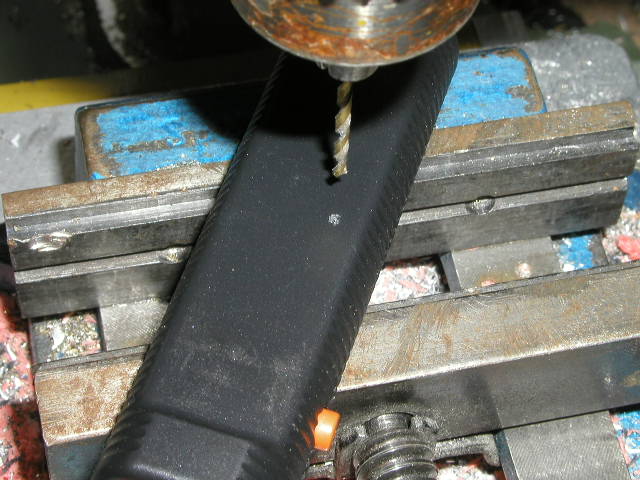

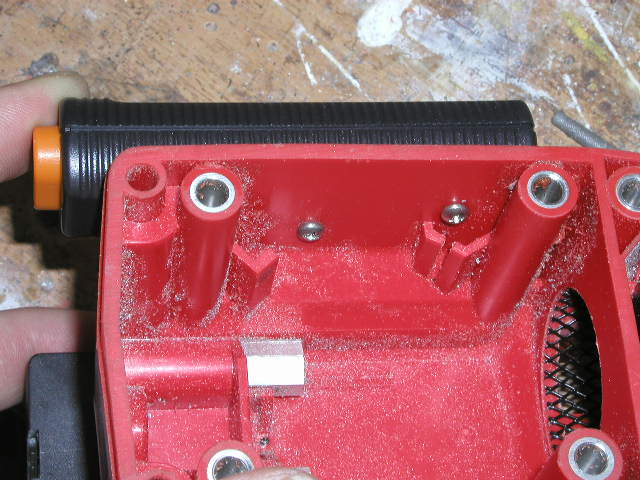

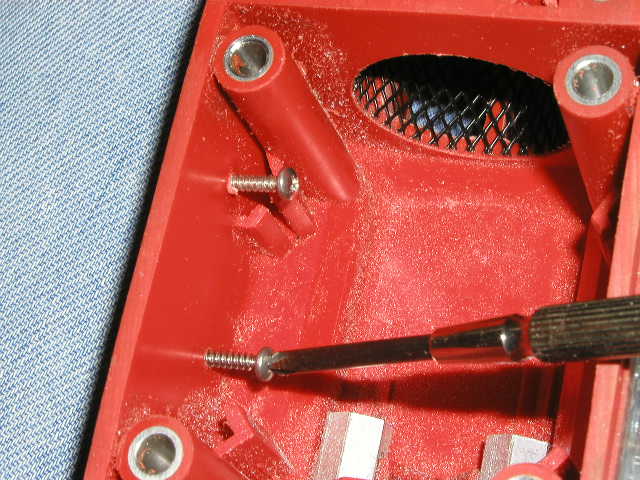

Now drill out and tap 4-40 holes in the remote release casing.

Done!
