Super Cub Night Flying LED Kit

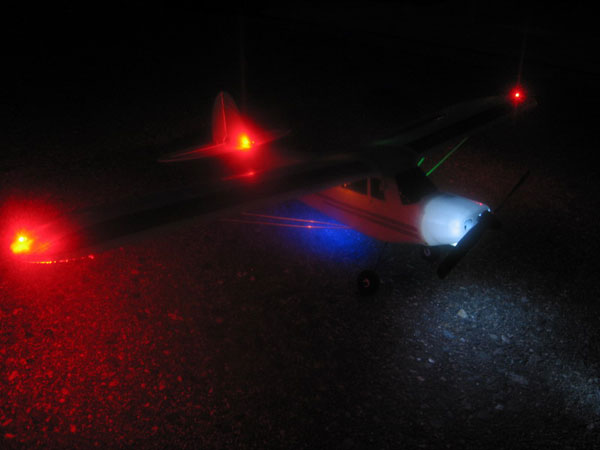

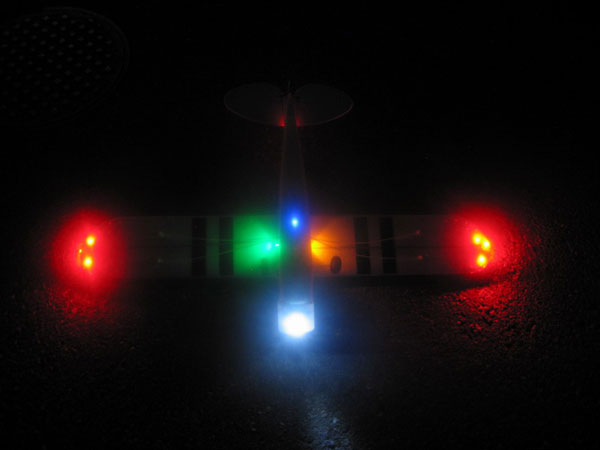

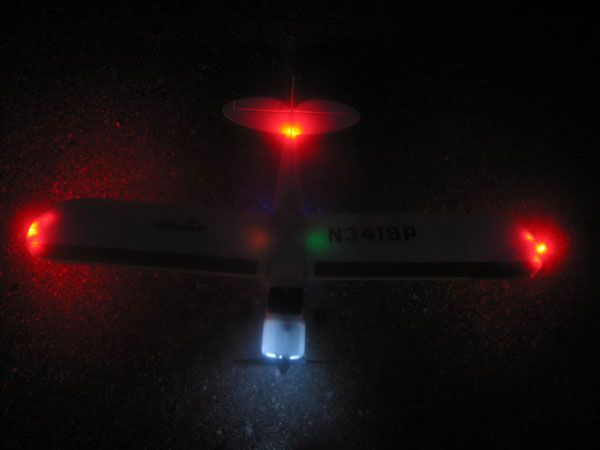

The Super Cub Night Flying LED Kit is the definitive night
lighting kit for your R/C Super Cub or other plane! The kit will allow
you to fly your R/C plane during overcast skies, in daylight, dusk, or
absolute darkness. We have engineered the kit to maximize lighting
efficiency and to relay unambiguous information to the pilot regarding
the plane's orientation while in flight.
This kit includes all lights (LEDs), cabling, and assembled processor
board to finish your light kit. The lights are controlled via the X-port
jack on most HobbyZone™ and Parkzone™ park flyers and has been
extensively used on the Super Cub model*. The light board gets power
from the port and allows you to change light modes via the X-port button
on your transmitter (they are 4 different light modes to choose from).
Here is a picture of the assembled processor board w/ X-port cable
and LED ribbon cable plugged into the board:
Kit Details
The night flying kit includes the following parts:
- Assembled processor board w/ X-port cable and 16-pin header
- 16-conductor rainbow ribbon cable w/ connector on one end
- 4-conductor long wing ribbon cable
- 8 red oval 5mm LEDs
- 1 blue oval 5mm LED
- 1 yellow cylindrical 5mm LED
- 1 green cylindrical 5mm LED
- 1 white LED cluster module
- 1 red 5mm LED
You will need to complete the assembly of the lights, which requires
splicing wires and soldering the LEDs to the cables. The skill level for
the kit is beginner/moderate.
Kit Pricing
| Super Cub Night Flying LED Kit |
|
|
Each kit is hand assembled in the USA.
*This model of the light kit is controlled via the X-port interface. We
will soon also have a kit that works off an aux servo channel input so
it can be used with any standard receiver with 3-pin servo inputs.
*X-port, HobbyZone, ParkZone are (c) Horizon Hobby. |
|
|
|
